VGA TO AV Converter
VGA TO AV Converter
Model:   NS1938

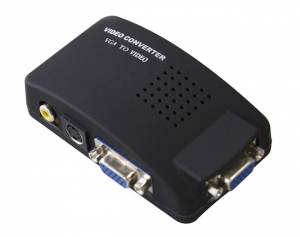

 VGA to Video Converter Box
1.VGA toTV Digital Scan Converter
2.Superior image quality
3.100% QC passed and guarante
Features Technical Application
1.External VGA-to-TV Digital Scan Converter

2.Superior image quality with resolutions up to 1024x768 x 16.7 million colours.

3.Simultaneous display on Personal Computer and TV

4.Simultaneous display on laptop LCD and television

5.No settings to alter or adjust on PC or Laptop

6.Four line buffer technology for sharp flicker free images on the TV screen

7.3 channel 10-bit output D/A converter

8.Simultaneous Composite and S-Video output

9.PAL/NTSC switcher fits different TV standard in different countrie

 The whole family shares one computer, watching movies and playing games on the internet.

The popularization of computers brings great conveniences for people’s work and life. Maybe at one certain occasion you need to change the VGA signals into Video/S video signals. The movies you downloaded from the internet can be entirely combined to the family cinema, and you can easily experience cinema effect ion. You also can demonstratethe BRM need to be presented to the audience through the large-screenTV

Video Convertercan easily help you to realize the conversion of VGA signals into Video/S video signals.


Performance Characteristics:

uOne input of VGA signals, one output of VGA signals,

uOne output of Video, one out put of S Video

uOne ACPIof 5V


VGA signals:640x480@60/72/75/85Hz,800x600@60/75Hz,1024x768@60/75Hz1280x1024@60Hz

uAt the same time, output the VGA\VIDEO\S-VIDEO signals.

uShowSimultaneouslypictures on the monitor and TV

uSupport the systems below :

    The TV systems of NTSC (Taiwan and USA), NTSC-EIAJ (Japan), PAL (EURO, China)
    PAL-M (Brazil), PAL-N(Uruguay Paraguay)

uSupport the OVERSCAN and UNDERSCAN display mode,

uConvenient to carry because it is light, thin ,short and small

uVolume:110mm(length )x56mm(width)x36mm(height)

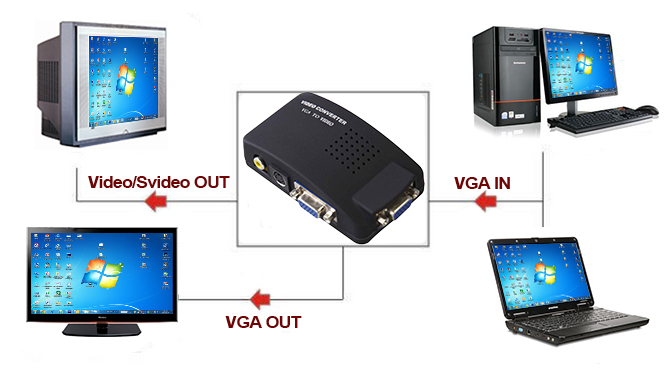

Explanation of Interface:





      (1)DC 5V

connect  to USB interface



AdjustPAL/NTSC system

      (3)Video Out

connect  to TV or VCR

      (4)S video Out

connect  to TV or VCR

      (5)VGA Out

connect  to monitor

      (6)VGA In

connect  to AGP(AcceleratedGraphics Port)


Functions of keystrokes:






The four keystrokes are up down left rightand they can adjust the positions of  AV pictures


Menupress once appearing OSD menu long press for 3 seconds will reset


Amplify keypress once amplify the picturesPress again, reset.


 System requirements:

*support PC and MAC computers

*  no need to install Device Driverplug and play

Packing accessories:

Name of accessories



AV line



VGA line



S video line



Introduction of products

one copy


Host of converter



USB line


Use to power
