LTE Module
LTE Module

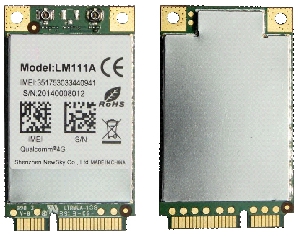

Model:   LM111A

Features Technical Application
             General Features

TDD LTE:Band38/ Band39/ Band40

FDD LTE: Band7

TD-SCDMA :Band34/Band39

•Quad-band: GSM/EDGE/ GPRS/ 900/1800 MHz

•Receive diversity

LTE/TD-SCDMA/GSM B34/B38/B39/B40/B7

MIMO

LTE: DL 2*2 MIMO

•Transmitter power

TD-SCDMA : +24dBm (Power Class 3)

GSM/GPRS 1900MHz/1800MHz: +30dBm (Power Class 1) GSM/GPRS 900M/850MHz: +33dBm (Power Class 4) EDGE 1900MHz/1800MHz: +26dBm (Power Class E2) EDGE 900M/850MHz: +27dBm (Power Class E2)

LTE:Accorded with 3GPP TS 36.101 R8+23dBm(Power Class 3)

•Control via AT commands

3GPP TS 27.007 and TS 27.005

WOSIN extended AT command

  SIM card supply voltage

1.8V to 3.0 V UICC (SIM/UICC/UIM), ISIM supported

  Supply voltage range

Normal: 3.0 to 4.2V (typical:3.6V)

•Temperature range

Normal operation: -10°C to +60°C

Extended operation: -20°C to +70°C Storage: -40°C to +85°C

  Humidity: 5% - 95%

  Dimensions: 51 mm x 30 mm x 4.2 mm

  Weight: <15g

•OS: Win2000/ XP/VISTA,VISTA32/64,Windows 7,Windows 8

Linux2.4/Linux2.6/Android2.3 above

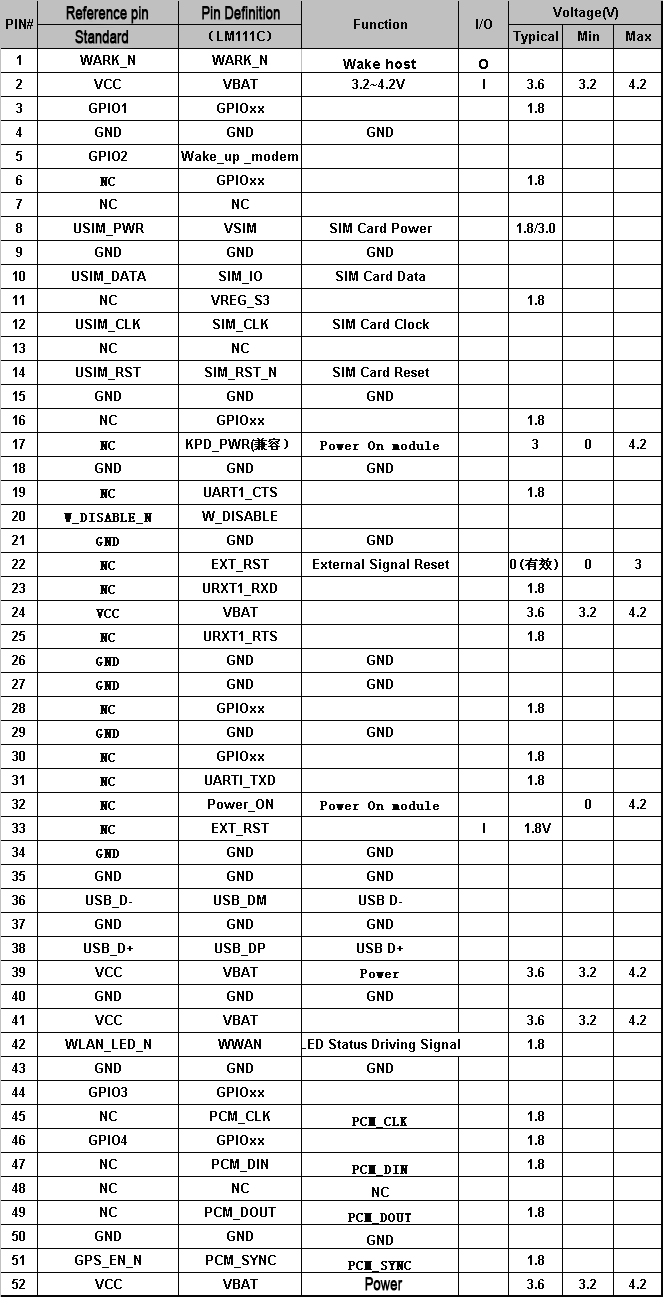

      Interfaces

•Antenna interfaces x 2

PCI Express Mini Card Interface USB 2.0 interface high speed Power supply

UICC interface

UART

I2C


Additional Features

•SIM Hotswap

•IPV4

•BodySAR

•Tunable Antenna

PCM



                Data Features

GPRS: DL 85.6 kbps/UL 85.6 kbps

EDGE: DL 236.8 kbps/UL 236.8 kbps

TD-SCDMA(HSPA): UL 384Kbps / DL 2.8 Mbps

LTE TDD: UL 17 Mbps/ DL 68 Mbps @Bandwidth 20M cat3

•LTE FDD: UL 50 Mbps/ DL100 Mbps @Bandwidth 20M cat3



                SMS Features

•Supporting MO and MT

•Supporting formats of PDU

•Point-to-point and cell broadcast



Approvals

•CCC

•FCC

•CE

•RoHS



              Attention                              Please refer to the latest version of Hardware Guide about the specifications. wosin reserves the right to make changes or improvements to any to the products without prior notice.
