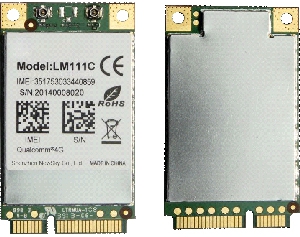

4G LTE Module
4G LTE Module
Model:   LM111C

Features Technical Application

            General Features

TDD LTE:Band38/ Band39/ Band40/ Band41

FDD LTE: Band1/ Band3/Band7/ Band8

  Penta-band : DC-HSPA+/HSPA+/HSPA/UMTS B1/B2/B5/B8

•Quad-band: EDGE/ GPRS/GSM 1900/1800/900/850

CDMA/EVDO BC0

•Receive diversity

LTE/DC-HSPA+/HSPA+/HSPA/UMTS B1/B2/B5/B8/ EVDO

MIMO

LTE: DL 2*2 MIMO

•Transmitter power

WCDMA/HSPA+ : +24dBm (Power Class 3)

GSM/GPRS 1900MHz/1800MHz: +30dBm (Power Class 1) GSM/GPRS 900M/850MHz: +33dBm (Power Class 4) EDGE 1900MHz/1800MHz: +26dBm (Power Class E2) EDGE 900M/850MHz: +27dBm (Power Class E2)

LTE:Accorded with 3GPP TS 36.101 R8+23dBm(Power Class 3) CDMA BC0: +23 dBmPower Class 3

•Control via AT commands

3GPP TS 27.007 and TS 27.005

WOSIN extended AT command

  SIM card supply voltage

1.8V to 3.0 V UICC (SIM/UICC/UIM), ISIM supported

  Supply voltage range

Normal: 3.2 to 4.2V (typical:3.6 V)

•Temperature range

Normal operation: -10°C to +60°C

Extended operation: -20°C to +70°C Storage: -40°C to +85°C

  Humidity: 5% - 95%

  Dimensions: 50 mm x 31 mm x 4.2 mm

  Weight: <15g

•OS: Win2000/ XP/VISTA,VISTA32/64,Windows 7,Windows 8

Linux2.4/Linux2.6/Android2.3 above

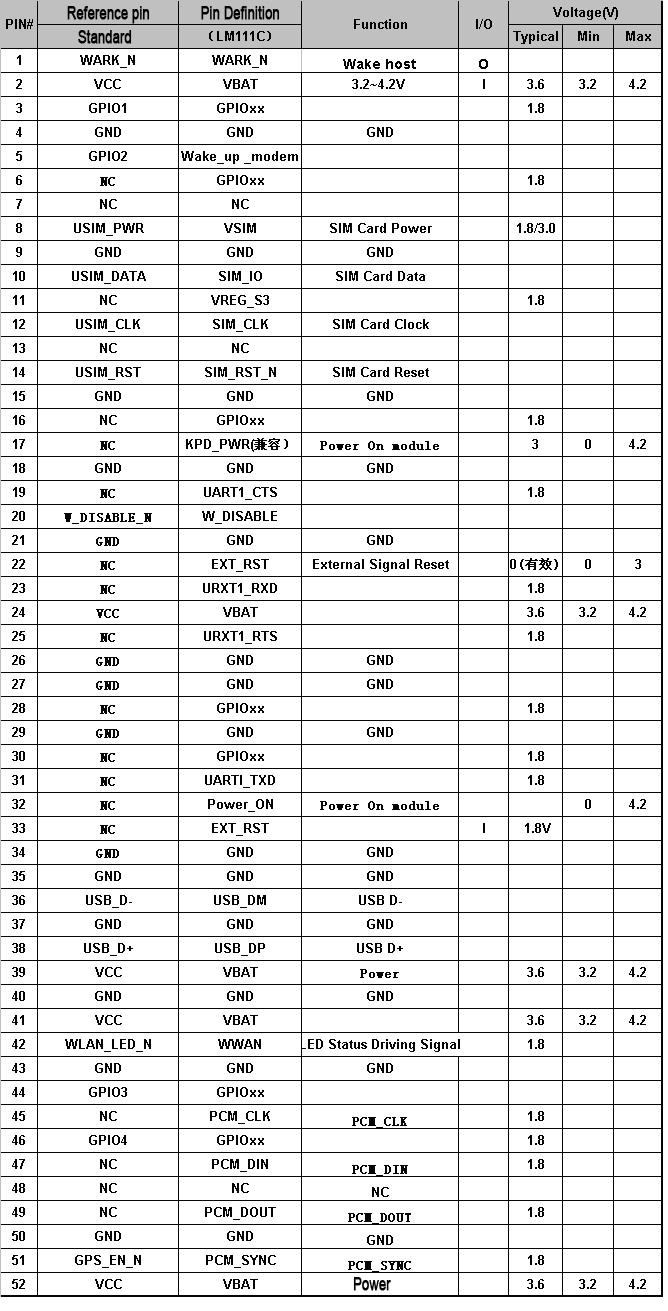

      Interfaces





•Antenna interfaces x 2

PCI Express Mini Card Interface USB 2.0 interface high speed Power supply

UICC interface

UART

I2C


Additional Features

  Sleep wake-up

  IPV4

  PCM

  SIM Hotswap

  BodySAR







                Data Features

1x: UL (153.6 kbps)/DL (153.6 kbps)

EVDO Rev.A: UL (1.8 Mbps) /DL (3.1 Mbps)

GPRS/EDGE: Multi-slot Class 12

WCDMA PS: UL (384 kbps)/ DL (384 kbps)

DC-HSPA+ :UL (5.76 Mbps)/ DL (42 Mbps)

LTE TDD: UL 17 Mbps/ DL 68 Mbps @Bandwidth 20M cat3

•LTE FDD: UL 50 Mbps/ DL100 Mbps @Bandwidth 20M cat3



                SMS Features

•Supporting MO and MT

•Supporting formats of PDU

•Point-to-point and cell broadcast



              Approvals

•CCC

FCC

•CE

RoHS



              Attention                              Please refer to the latest version of Hardware Guide about the specifications. Wosin reserves the right to make changes or improvements to any to the products without prior notice.
