4g lte PCBA

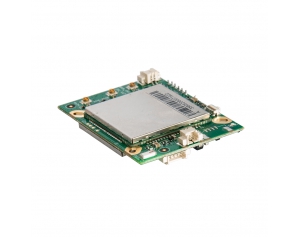

4g lte PCBA
Model:   NS-L321

Features Technical Application
Features:

*  SupportingMO and MT

* Supporting formats ofPDU

* Point-to-pointandcellbroadcast

* Dimensions: 51 mm x 38 mm x 8 mm

*  Weight: 14g

* OS: Win7/ 8/10 32bit/64bit,

*  Linux2.4/Linux2.6/Android2.3 above

Additional Features:

*  Sleep wake-up

*  IPV4

*  Voice

*  SIM Hotswap

*  BodySAR




Specifications



Data Features

CPU





ZX297520V3, CAT4,

GPRS/EDGE Multi-Slot Class 12



WCDMA PS:

UL (384 kbps)/ DL (384 kbps)

DC-HSPA+:

UL (5.76 Mbps)/ DL (42 Mbps)

TD-SCDMA:

UL (384 kbps)/ DL (2.8Mbps)

LTE TDD:



LTE FDD:



UL 10 Mbps/ DL 112 Mbps



UL 50 Mbps/ DL150 Mbps

Frequency Band



Europe

TDD-LTE

NA

FDD-LTE

B1(2100MHz),B3(1800MHz),B7(2600MHz),

B8(900MHz),B20(800MHz)

UMTS

B1(2100MHz),B8(900MHz)

Middle East:


TDD-LTE

Band38/Band39/Band40/Band41

FDD-LTE

B1(2100MHz),B3(1800MHz),B5(850MHz),

UMTS

Band1/ Band8













America:

TDD-LTE

NA

FDD-LTE

B2(1900MHz),B4(AWS,1700MHz),B5(850MHz),

B7(2600MHz)

UMTS

Band2 /Band4 /Band5



General Features

MIMO

LTE: DL 2*2 MIMO

Transmitter power

LTE: 3GPP TS 36.101 R8+23dBm(Power Class 3)

TD-SCDMA: +24dBm (Power Class 3)

UMTS:    +24dBm (Power Class 3)



Control via AT

3GPP TS 27.007 and TS 27.005



SIM card voltage

1.8V to 3.0 V UICC (SIM/UICC/UIM),  ISIM supported)



Input voltage range

Normal: 5to 12V (typical:12 V)

Working temperature

Normal operation: -10°C to +60°C

Extended operation: -40°C to +85°C

Storage: -40°C to +85°C

Humidity: 5% - 95%



Intertaces

l   Antenna interfaces

l   Express MiniCard Interface

     USB 2.0 interface high speed

       Power supply

       UICC interface

       UART

       I2C

Approvals

l   CCC

l   FCC

l   CE

l   RoHS

Attention

Please refer to the latest version of Hardware Guide about the

specifications.Newsky reserves the right to make changes or

improvements to the product without prior notice
