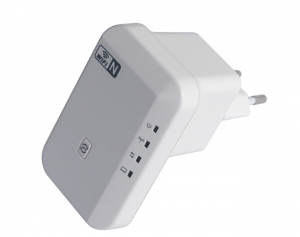

Wifi repeater
Wifi repeater

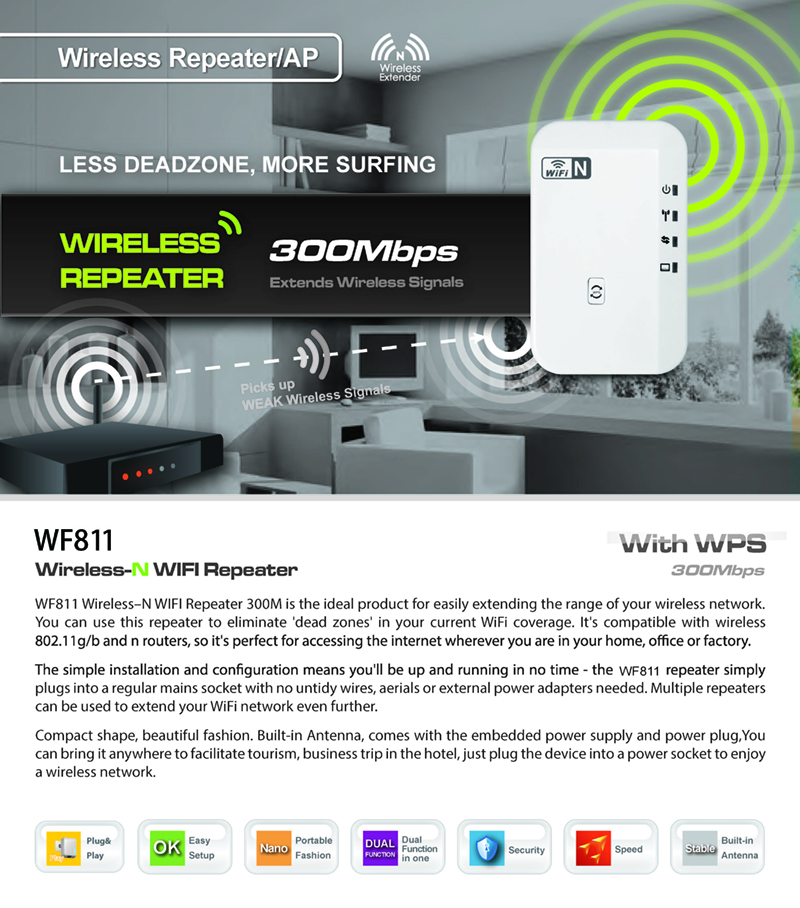

Model:   WF811

Supports both Wireless Access Point and Wireless Repeater modes.

Extends the range of your WLAN network easily,cover wlan signal in more places.

Supports Wifi Protection Setup function (WPS)

Support 2.4GHz WLAN networks,Provides up to 300Mbps transmission rates.





Features Technical Application

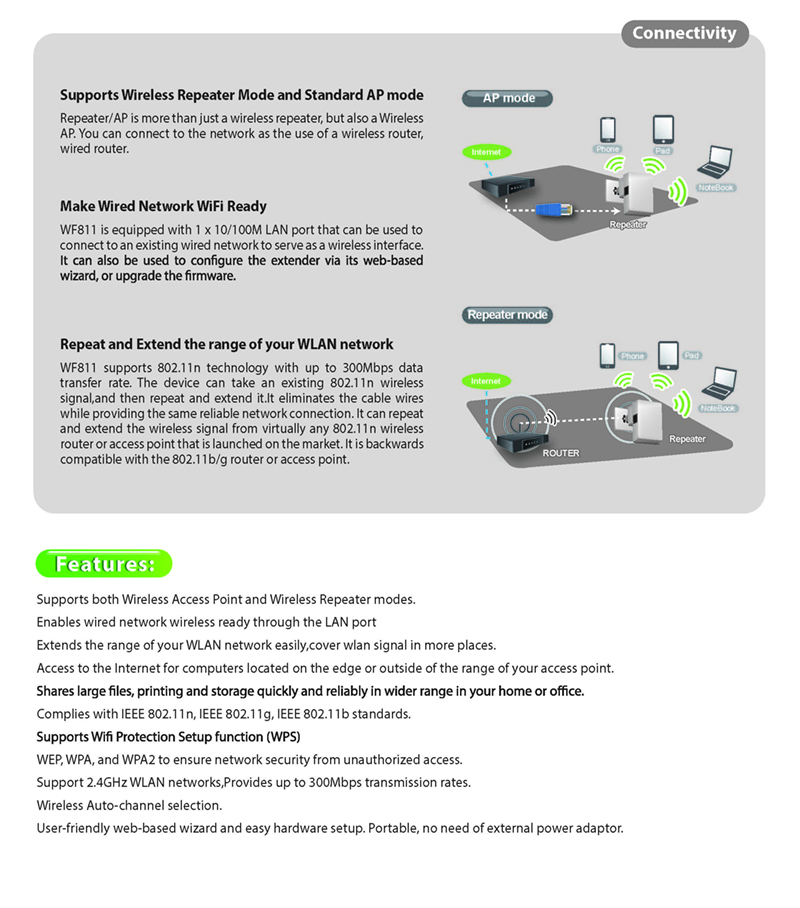

1.Supports both Wireless Access Point and Wireless Repeater modes.

2. Enables wired network wireless ready through the LAN port

3.Extends the range of your WLAN network easily,cover wlan signal in more places.

4.Access to the Internet for computers located on the edge or outside of the range of your access point.

5. Shares large files, printing and storage quickly and reliably in wider range in your home or office.

6.Complies with IEEE 802.11n, IEEE 802.11g, IEEE 802.11b standards.
7.Supports Wifi Protection Setup function (WPS)

8. WEP, WPA, and WPA2 to ensure network security from unauthorized access.

9.Support 2.4GHz WLAN networks,Provides up to 300Mbps transmission rates.

10.Wireless Auto-channel selection.

11.User-friendly web-based wizard and easy hardware setup. Portable, no need of external power adaptor.

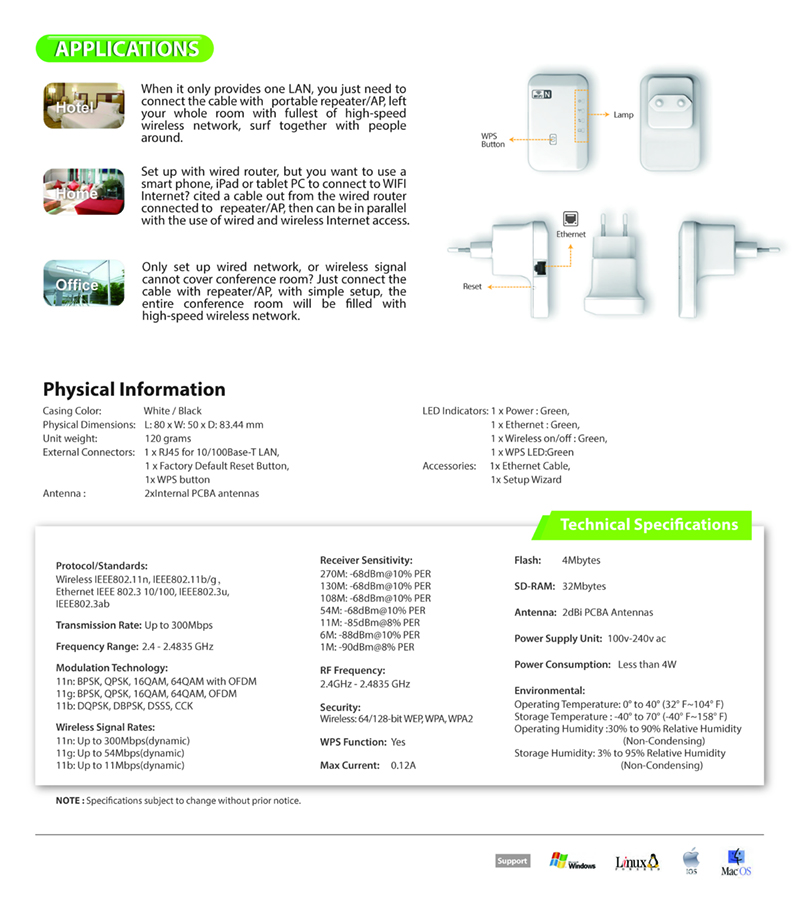

Technical Specifications:
Protocol/Standards: Wireless IEEE802.11n, IEEE802.11b/g,

Ethernet IEEE 802.3 10/100, IEEE802.3u, IEEE802.3ab

Wireless Signal Rates:11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)

11b: Up to 11Mbps(dynamic)

Frequency Range  2.4-2.4835GHz

Wireless Transmit Power:14 ~18 dBm (Typical)

Modulation Technology:11n: BPSK, QPSK, 16QAM, 64QAM with OFDM

                       11g: BPSK, QPSK, 16QAM, 64QAM, OFDM

                       11b: DQPSK, DBPSK, DSSS, CCK

Receiver Sensitivity:    270M: -68dBm@10% PER

                        130M: -68dBm@10% PER
                        108M: -68dBm@10% PER
                         54M: -68dBm@10% PER
                         11M: -85dBm@8% PER
                         6M: -88dBm@10% PER
                         1M: -90dBm@8% PER
Flash:                     4Mbytes
SD-RAM:                  32Mbytes
Antenna
2dBi PCBA Antennas

WPS Function

Yes

Security:             Wireless: 64/128-bit WEP, WPA, WPA2, WPA-PSK, WPA2-PSK

Power Supply Unit:     100v-240v ac

Power Consumption :    Less than 4W

Max Current :             0.12A

Transmission Rate:      Up to 300Mbps

Operating temperature:  0°C~40°C (32°F~104°F)

Storage temperature:  -40°C~70°C (-40°F~158°F)

Operating humidity:    30% to 90% Relative Humidity (Non-Condensing)

Storage humidity:      30% to 95% Relative Humidity (Non-Condensing)



Physical Interface:

Casing Color: White
Physical Dimensions: L:80 x W:50 x D:83.44 mm
Unit weight: 120 grams

LED Indicators:
1 x Power : Green
1 x Ethernet : Green
1 x Wireless on/off : Green
1 x WPS LED : Green

External Connectors:
-1 x RJ45 for 10/100Base-T LAN
1 x Factory Default Reset Button
1x WPS button

Antenna: 2xInternal PCBA antennas

Accessories:
-1x Ethernet Cable
-1x Setup Wizard
