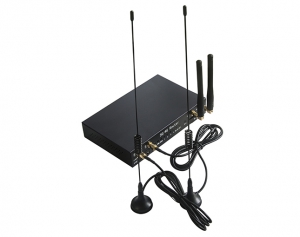

Industrial router
Industrial router
Model:   NS-L340
4G LTE 300Mbps
Features Technical Application

Product Description
         Wireless-N 4G Router ,  combined wired/wireless/4G network connection device designed specifically for small business, office and home networking requirements. It provides a simple and fast way to access Internet or ethernet without cables for work or fun. It is compatible with the IEEE 802.11n standard with wireless transmission speeds of up to 300Mbps. It is also compatible with older 11g and 11b wireless products. The router provides also provides easy and quick security setup with WPS (Wi-Fi Protected Setup) standard, get network safety at the push of a button.

4G LTE Technical Standard
LTE:  100 Mbps DL within 20 MHz bandwidth, 50 Mbps UL within 20 MHz bandwidth
HSPA+ :  3GPP Release 7, up to 21.6 Mbps(max) DL, Category 14
HSUPA :   3GPP Release 6,  up to 5.76Mbps(max) UL, Category 6
HSDPA :    3GPP R5, up to 7.2 Mbps(max) DL, Category 20
WCDMA :   (UMTS) Up to 384 Kbps DL and UL

Frequency  Band
LTE:   B1/B2/B3/B5/B7/B8/B20(2100/1900/1800/850/2600/900/800MHz) or B1/B2/B4/B5/B7/B8/B12(2100/1900/AWS 1700/850/2600/900/700MHz)
HSPA+/HSUPA/HSDPA:   850/900/1900/2100MHZ

SIM Card Interface
Two SIM Card Slot

Storage Function
SD Card Interface

Physical Specifications
Interface :   Two SIM Card Slot
                   LAN: 10/100M Auto MDI/MDIX RJ45 port * 4

Indicators:     POWER, WLAN,  LAN1,LAN2,LAN3,LAN4, 4G, WPS
Color :           Black

Network Media
10BASE-T:         UTP category 3, 4, 5 cable (maximum 100m)
                           EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX:    UTP category 5, 5e cable (maximum 100m)
                           EIA/TIA-568 100Ω STP (maximum 100m)

Antenna Gain:               3dBi * 1
Orientation|:                   Omni-directional
Fixed or Detachable:     Detachable

Power Supply Unit
Original PSU Specification: Switching PSU
Power Input:                          100-240V/50-60Hz
DC Power Iutput:                   5-40VDC

Power Consumption

WiFi Wireless Parameters
Frequency Band:    2.4~2.4835GHz
Extend Frequency: DSSS
Modulation Type:    DBPSK, DQPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM)
Data Transmission Rates:
11n:    Up to 300Mbps  (Dynamic)
11g:    54/48/36/24/18/12/9/6Mbps (Dynamic)
11b:    11/5.5/2/1Mbps (Dynamic)
Transmission Distance :Indoor up to 100m, outdoor up to 300m
channel:   1~11 (US, Canada)
                1~13 (Europe)
                1~14 (Japan)
RF Power: 18dBm (max)
Receive Sensitivity:   130M: -68dBm@10% PER
                                  108M: -68dBm@10% PER
                                   54M: -68dBm@10% PER
                                   11M: -85dBm@8% PER
                                   6M: -88dBm@10% PER
                                   1M: -90dBm@8% PER
Wireless Security:  WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
                               64/128/152-bit WEP
                               SSID Enable/Disable
                                MAC address filter

WiFi Wireless Operation Mode
AP Router, AP+Bridge

Default Settings
Default Manage Mode:       Web management
DHCP/DHCP Assign:          DHCP server enabled DNS Disabled
Remote Management:        Disabled
Wireless Operation Mode:  AP Mode
Wireless Radio:   Enabled
SSID /SSID Related:          Enable SSID Broadcast
                                            SSID: Wireless_XXXXXX (XXXXXX stands for the last 6 characters of the router’s MAC address)
channel:                              Auto
Router Settings:                  Internet Access Type: 3G only or 4G only or Auto mode
                                            WAN Connection Type: Dynamic IP
Security Settings:                Firewall Disabled
                                            Wireless Security Disabled

Basic:                       Supports 802.11g, 802.11b, 802.3, 802.3u, Compatible with 802.11n
                                  Fully compatible with 802.11b/g products
                                 Supports TCP/IP, PPPoE, DHCP, ICMP, NAT
LAN:                         Built-in DHCP server supporting static IP address distributing
                                  Built-in NAT server supporting Virtual Server, Special Application, and DMZ host
                                 Supports UPnP, Dynamic DNS, Static Routing, VPN pass-through
                                 Supports IP QoS
                                  Built-in firewall with IP address filtering, Domain Name filtering, and MAC address filtering
                                 Supports Flow Statistics
                                 Supports ICMP-FLOOD, UDP-FLOOD, TCP-SYN-FLOOD filter, DoS protection
                                  IP & MAC Binding
Access Internet:      Shares data and Internet access for users, supporting 3G, PPPoE, Dynamic IP, Static IP Internet access
Wireless:                  Supports Wireless Roaming
                                   Provide Wireless Statistics
Wireless Security:   Provides 64/128/152-bit WEP encryption security
                                  Provides WPA/WPA2 and WPA-PSK/WPA2-PSK authentication and TKIP/AES encryption security
                                  Provides wireless LAN ACL (Access Control List) filtering
                                 Supports WPS(WIFI Protected Setup )
System:                    Easy firmware upgrade
                                 Remote Management

Protocols and Standards
 IEEE Standards:                         802.11g, 802.11b, 802.11i, 802.1X, 802.3, 802.3u, 802.3X, Compatiable with 802.11n
Others Protocols and Standards:CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP

Operating Temperature: -30 to +70
Storage Temperature:    -40 to +80
Operating Humidity:
Dimension:                        170(L)x110(L)x30(H)mm
